DEWALT Green Beam Laser Level – 12 Line

Professional precision. High visibility. Built for demanding jobsites. This DEWALT Green Beam Laser Level delivers accurate and highly visible reference lines for construction, installation, renovation, and professional layout applications.

Product Specifications

• Brand: DEWALT
• Product Type: Laser Level
• Laser Wavelength: 515NM
• Laser Color: Green

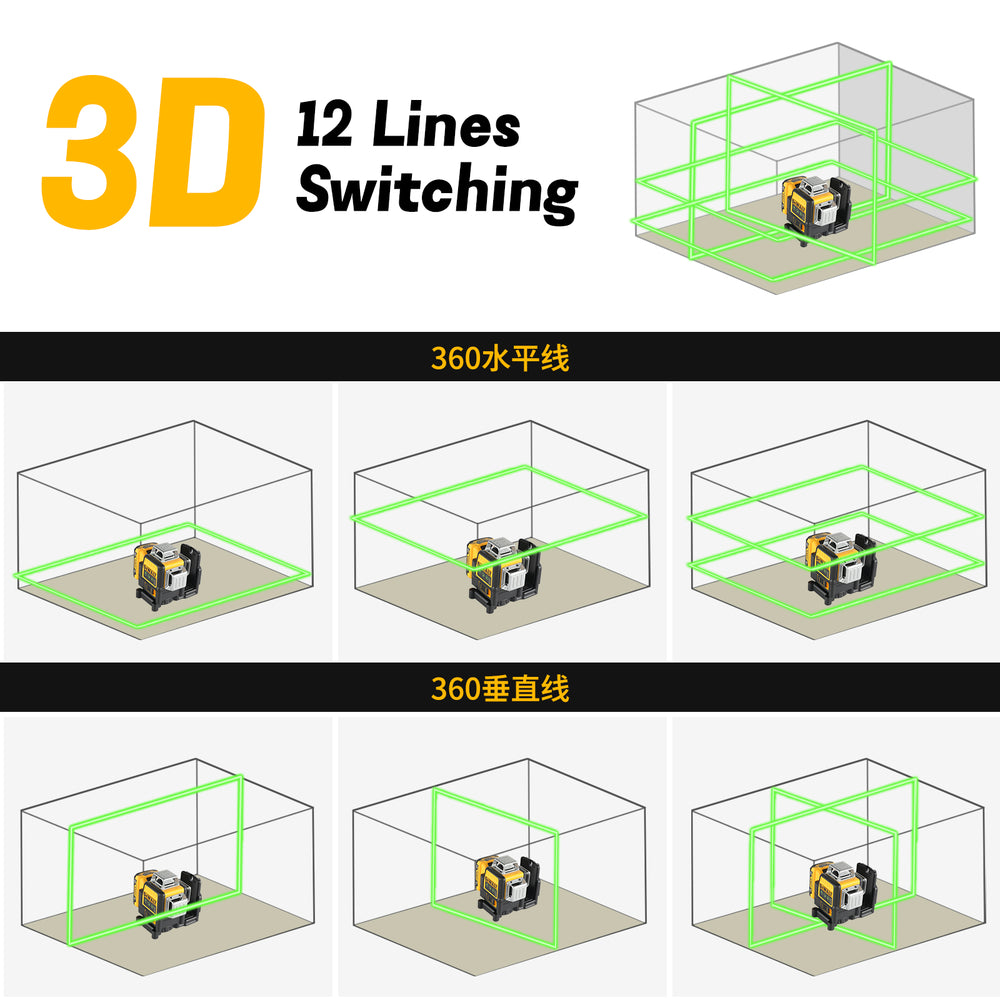

• Number of Laser Lines: 12 Lines
• Color Accuracy: ±3mm @ 10M
• Working Accuracy: ±1/8" at 30 ft

Installation & Connection

• Thread Mount: 1/4"-20 and 5/8"-11
• Tripod Connection: 1/4" × 5/8"
• Power / Lock: Dedicated power and lock controls

Protection & Self-Leveling

• Protection Rating: IP65 – Dust and Water Protection
• Self-Leveling Range: ±4°
• Automatic Calibration: Automatically calibrated within 3°
• Pendulum: Unlocked during self-leveling mode
• Operating Range: Available within 4° of leveling range

Battery Specifications

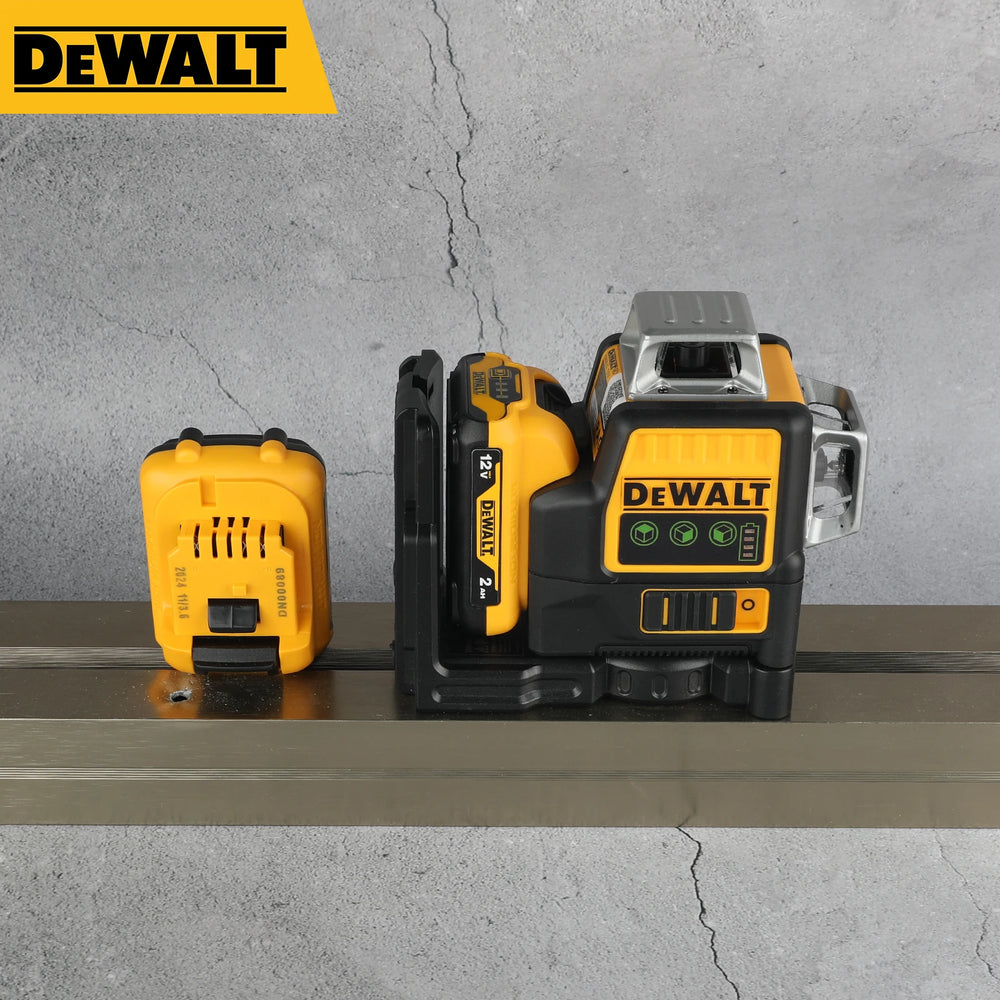

• Battery Type: DEWALT 12V MAX Battery
• Battery Display: Quantity of electricity display supported
• Battery Length: Approx. 6cm / 2.4in

Function Modes

Self-Leveling Mode: The laser automatically calibrates within 3°. With the pendulum unlocked, the laser can operate within the ±4° self-leveling range for accurate horizontal and vertical reference lines.

Manual Mode: The pendulum can be locked to maintain 90° angles. The laser lines can be locked and projected at different angles for specialized layout applications. In manual mode, the laser blinks approximately every 3 seconds to indicate that the tool is outside automatic self-leveling operation.

Dimensions

• Length: Approx. 14cm / 5.5in
• Width: Approx. 7.5cm / 3in
• Height: Approx. 9cm / 3.5in
• Battery Length: Approx. 6cm / 2.4in

Professional 12-Line Laser Performance

With 12 laser lines, bright green visibility, multiple mounting options, automatic self-leveling, manual mode, and IP65 protection, this DEWALT laser level is designed to provide accurate and flexible positioning for a wide range of professional applications.
